Hyundai i30 Hatch Front Radar Badge Overlay
Installation Guide 4 mins

Hyundai i30 Hatch Front Radar Badge Overlay

By Lisa Cavagnino
Hyundai i30 Hatch Front Radar Badge Overlay

Featured Products

Hyundai i30 "N" Style Front Badge Overlay 2017-2023

$29.86

Underlay: Gloss Black
N Badge Colour: Gloss Black
Hyundai i30 Front Badge Overlay 2017-2023

$29.86

Hyundai Facelift i30 N Line Front Badge Overlay 2024+

$29.86

Underlay: Gloss Black
Hyundai Badge: Gloss Black

STEP 1: PREP

Clean the area with warm soapy water or an alcohol spray/wipe to remove any dirt and dust prior to installing. Dry the area completely with a microfibre.

STEP 2: APPLICATION

Peel the underlay piece (full oval) from the backing paper.

Apply the underlay to the badge, to check the position, gently tack in the middle, step back and assess. If you need to move it gently peel off and re adjust.

Once in the correct position, starting from the middle apply pressure with your finger and smooth out in a circular motion moving further away from the centre as you go. If a crease appears, attempt to lift that section of the vinyl and smooth out.

STEP 3: DETAILS

To centre the Hyundai emblem perfectly, add masking tape on either side and the top and bottom. Peel the Hyundai logo from the backing paper, using the transfer tape position it and smooth outwards.

STEP 4: FINISHING TOUCHES

Gently peel back the transfer tape to reveal the Hyundai logo. To further assist the vinyl in adhering you can lightly apply heat with a heat gun or hair dryer.

Contact us if you have made a mistake and we will happily provide a solution.

0:00

Video Instructions

Prep

Clean the area with warm soapy water or an alcohol spray/wipe to remove any dirt and dust prior to installing. Dry the area completely with a microfibre.

Application

Peel the underlay piece (full oval) from the backing paper.

Apply the underlay to the badge, to check the position, gently tack in the middle, step back and assess. If you need to move it gently peel off and re adjust.

Once in the correct position, starting from the middle apply pressure with your finger and smooth out in a circular motion moving further away from the centre as you go. If a crease appears, attempt to lift that section of the vinyl and smooth out.

Details

To centre the Hyundai emblem perfectly, add masking tape on either side and the top and bottom. Peel the Hyundai logo from the backing paper, using the transfer tape position it and smooth outwards.

Finishing Touches

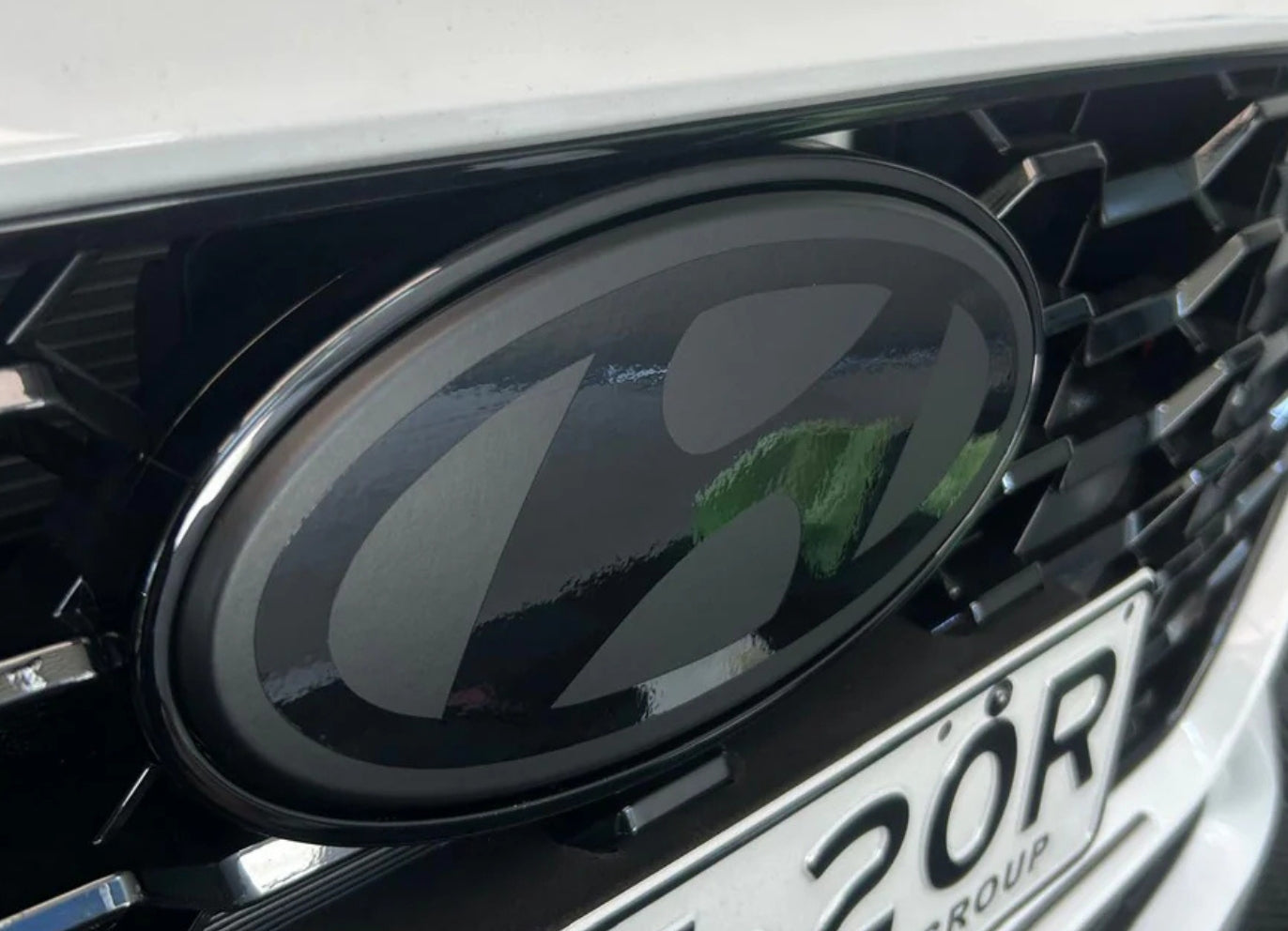

Gently peel back the transfer tape to reveal the Hyundai logo. To further assist the vinyl in adhering you can lightly apply heat with a heat gun or hair dryer.

Contact us if you have made a mistake and we will happily provide a solution.
